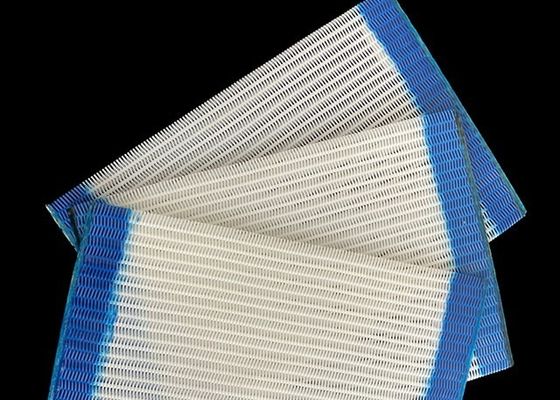

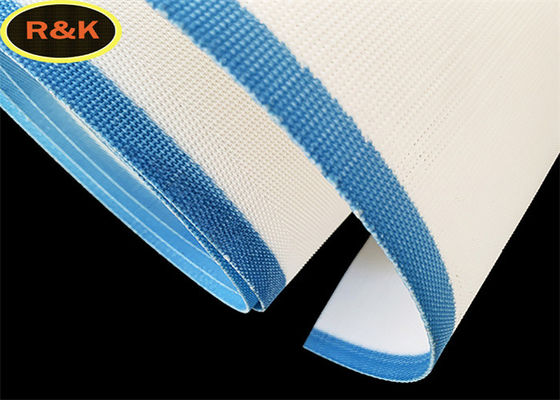

Polyester spiral mesh conveyor belt for sludge dewatering fabric used for drying food and paper
polyester dryer screen is a premium filtration component designed for industrial drying equipment, delivering reliable performance in plastic, chemical, and textile processing. Crafted from high-quality polyester fiber, it boasts excellent heat resistance (withstanding temperatures up to 150°C) and chemical stability, resisting corrosion from most acids, alkalis, and organic solvents.
The screen features a precision-woven structure with uniform mesh sizes (ranging from 20 to 200 meshes) to ensure consistent filtration. It effectively traps impurities, dust, and oversized particles while allowing smooth air and material flow, enhancing drying efficiency and product quality. Its durable construction minimizes wear and tear, extending service life and reducing replacement frequency.
Lightweight yet robust, the screen is easy to install and clean, lowering maintenance costs. It is compatible with most standard dryer models, offering versatile applicability across various industrial scenarios. Whether for PET resin drying, fiber processing, or chemical material dehydration, our polyester dryer screen provides stable, efficient filtration to optimize your production process.
We offer customizable mesh sizes and dimensions to meet specific customer requirements, ensuring perfect fit and performance. Choose our polyester dryer screen for reliable filtration, long-lasting durability, and enhanced operational efficiency.
| Weaving Type |
Model |
Thread Diameter |
Density(No.s/cm) |
Strength ((N/cm) |
Air Permeability (m3/m2h) |
| (mm) |
| Warp |
Weft |
Warp |
Weft |
| 2-shed plain weaving |
05802 |
0.75 |
0.8 |
4.7-5 |
4.8-5 |
940 |
20000 |
| 05102 |
1 |
1 |
4.7-5.2 |
4.3-5 |
1600 |
15000 |
| 06702 |
0.7 |
0.7 |
8 |
7 |
1600 |
11000 |
| 07102 |
0.7 |
1 |
6.6-7 |
4.3-4.6 |
1100 |
15000 |
| 08552 |
0.55 |
0.55 |
7.5-8 |
8.5-9 |
850 |
850-6500 |
| 09452 |
0.45 |
0.45 |
10 |
8.6 |
1600 |
16000 |
| 09502 |
0.5 |
0.5 |
8.5-9 |
10-10.5 |
750 |
10000 |
| 12502 |
0.5 |
0.5 |
13.5 |
8.5 |
1800 |
6500 |
| 3shed plain weaving |
8603 |
0.5 |
0.6 |
10 |
9 |
1600 |
14000 |
| 8903 |
0.9 |
0.9 |
7.8-8 |
5-5.5 |
2100 |
7500-8500 |
| 7803 |
0.7 |
0.8 |
8 |
8 |
1600 |
10000 |
| 20353 |
0.3 |
0.35 |
22 |
14.5 |
1200 |
13000 |
Polyester Mesh Belt Data Sheet
| Product Name |
Polyester Mesh Belt White High Tension Plain Weave 100% Polyester Mesh Belt Used For Conveyor Belt |
| Loop Size |
Small Medium Large Loop |
| Material |
100% Polyester |
| Applicable Industries |
Energy & Mining Food & Beverage Shops, Advertising Company , Paper Making Industry |
| Color |
Blue , white and Red |
| Certificate |
ISO9001 |
| Type |
Polyester Dryer Belt
Polyester Sprial Press Filter Belt
|
| Packaging |
Plywood Case and woven mesh |
Polyester Mesh Belt Advantage
-1. The spiral filter screen is a kind of spiral screen with fillers in the middle, which can reduce air permeability, compact the mesh holes, reduce material loss on the mesh holes, and increase the lateral rigidity of the grid
2. Due to the herringbone design of the mesh belt, it can quickly separate sludge from the mesh belt and is less likely to stick to sludge. It generates a large amount of sludge, is easy to clean and the connection is convenient and fast.
3. Spiral pressure filter screens are mainly used for sludge dewatering in sewage treatment plants. It has the characteristics of air
Permeability and water permeability, high-temperature resistance up to 180 ℃, acid and alkali resistance, and sludge impermeability.
4. Due to its design structure, the sludge can be easily peeled off after pressure filtration, making it easy to clean. Service lifet is very long.
Polyester Mesh Belt Packing detail
1 We always use poly bag for the goods which ship by air, so that customer can save freight free
2 Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping
3 There also have some customer request us to use the carton to packing their goods
4 We can according to customer's requirement
-
